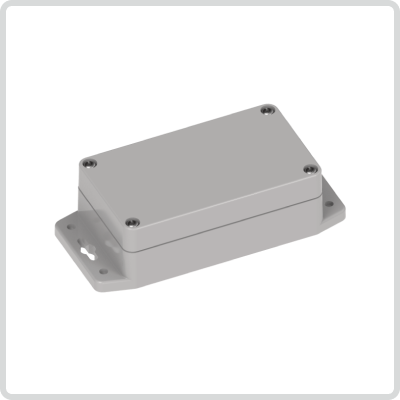

Outdoor/Industrial Tilt Sensor

SKU: 7531792 | Protocol: LoRaWAN

The high-precision tilt sensor uses an accelerometer to measure angle of tilt between 0-180 degrees with precision of 0.1 degrees. The outdoor/ industrial enclosure makes the sensor suitable for outdoor and industrial use. Applications include inclination monitoring, garage doors, pole lean detection, loading gates, and bay door orientation.

Range Very long range, up to a mile

Battery life Up to 10 years of battery life

Industrial Grade Weather proof encloser makes sensor suitable for outdoor and industrial use

Over-the-air configuration Enables optimization before and after installation for optimum reporting intervals or thresholds.

Technical Specifications

Measurement range -90° to +90° Single Axis

Accuracy +/- 2°

Operating temperature -40 to +70°C

Material ABS Plastic

Ingress protection rating IP54 Outdoor rated

Dimensions 5.709" x 2.592" x 1.575"

Weight 188g

Use cases

Manufacturing In production facilities, tilt sensors can ensure that heavy machinery is properly aligned and leveled, which is crucial for preventing mechanical failure and maintaining operational efficiency.

Transportation and logistics Tilt sensors can be used in trucks and trailers to monitor the load distribution and stability while in transit, helping prevent accidents due to tipping or shifting cargo.
