Outdoor Dry Contact Sensor

SKU: 7531801 | Protocol: LoRaWAN

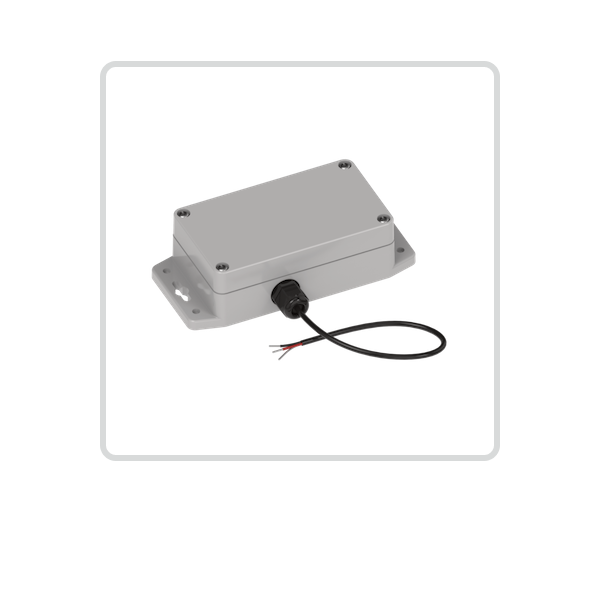

The LoRaWAN Dry Contact Sensor is a two-wire (plus ground) dry contact sensor that detects a connection between two wired points. It detects when the wires are open or shorted and sends an alert over the wireless network. The ABS Plastic enclosure makes the sensor suitable for outdoor and industrial use.

Battery life Advanced power management provides maximum battery life

Outdoor and Industrial Use Ruggedized design allows sensor to be deployed in outdoor or industrial settings

Configuration Sensors can be configured over the air, enabling them to be optimized, before and after installation, for optimum reporting intervals or thresholds.

Performance Excellent wireless penetration through structures such as walls and floors.

Technical Specifications

Power supply Replaceable Battery

Material ABS Plastic

Ingress protection rating IP54, Outdoor rated

Operating temperature -40 to +70°C

Dimensions 5.709" x 2.592" x 1.575"

Weight 196g

Use cases

Manufacturing Monitor the operational status of your machines and get alerted if when a machine stops unexpectedly

Hospitality Monitor whether HVAC systems are on or off an alert if the HVAC system goes offline unexpectedly

Healthcare Monitor medical equipment states, such as ventilators, infusion pumps, or alarm systems in patient rooms

Retail Use with refrigeration units and get alerted if they go offline to prevent food spoilage
